Best Charts for Survey Data: 7 Visualizations That Actually Work

You collected 500 survey responses. The data is sitting in a spreadsheet. Now what?

Raw survey data is overwhelming. Rows and rows of numbers, text responses, and Likert scale ratings that blur together. Your stakeholders don't want a spreadsheet—they want insights they can act on.

The solution? The right chart for the right question type. A well-chosen visualization turns confusing survey data into a clear story that drives decisions.

In this guide, you'll learn exactly which chart type works best for every common survey question format—from multiple choice to Likert scales to open-ended responses. No guesswork required.

Understanding Survey Data Types

Before choosing a chart, you need to understand what kind of data your survey generates. According to the Pew Research Center's survey methodology guide, matching your analysis method to your data type is essential for valid results.

Survey responses generally fall into four categories:

Categorical Data (Multiple Choice)

Responses that fall into distinct groups: "Which product do you prefer? A, B, or C." There's no inherent order between categories. This is the most common type of survey question, and a bar chart is almost always the right choice.

Ordinal Data (Likert Scales and Rankings)

Responses with a natural order: "Rate from 1-5" or "Strongly Disagree to Strongly Agree." The gaps between points aren't necessarily equal. According to a widely cited study on Likert scale methodology, proper visualization of ordinal data requires charts that preserve the ordered relationship.

Continuous Data (Ratings and Numerical Answers)

Numeric responses: age, salary range, hours per week. These can be treated as continuous variables and analyzed with histograms to reveal distribution patterns, or with box plots to compare distributions across survey segments.

Text Data (Open-Ended Responses)

Free-form text responses. These require different treatment—typically word frequency analysis—and visualization through word clouds or simple frequency bar charts after categorization.

Chart #1: Bar Charts for Multiple Choice Questions

Bar charts are the workhorse of survey visualization. When respondents choose from predefined options, a bar chart shows exactly how many (or what percentage) selected each choice.

When to Use

• Single-select multiple choice questions
• "Check all that apply" questions (with bars sorted by frequency)
• Comparing response counts across categories

Best Practices for Survey Bar Charts

• Sort by frequency: Descending order makes it easy to see the most popular choices (for a full guide on bar chart best practices, see our chart types guide)
• Use horizontal bars when category names are long ("I am satisfied with the customer service response time")
• Show percentages AND counts: "42% (n=210)" is more informative than either alone
• Include sample size: Always note the total number of respondents

Example: "Which Feature Do You Use Most?"

Suppose you surveyed 400 users about their most-used feature:

Feature	Responses	Percentage
Dashboard	156	39%
Reports	108	27%
Data Import	76	19%
Sharing	40	10%
Other	20	5%

A horizontal bar chart instantly shows Dashboard is the clear winner at 39%. Upload this data as a CSV to CleanChart and you'll have a publication-ready chart in under a minute.

Chart #2: Stacked Bar Charts for Likert Scale Data

Likert scale questions ("Strongly Disagree" to "Strongly Agree") are the bread and butter of surveys. Stacked bar charts are widely considered the gold standard for visualizing this type of ordinal data.

Why Stacked Bars Work

• Show the full distribution: See exactly how responses split across all options
• Enable comparison: Stack multiple questions to compare agreement levels side by side
• Color encodes meaning: Green for agree, red for disagree, gray for neutral (see our color in data visualization guide for choosing effective palettes)

The Diverging Stacked Bar Variation

For Likert scales, consider the diverging stacked bar chart, where neutral responses sit at the center and positive/negative responses extend in opposite directions. This variation, recommended by Qualtrics research methodology, makes it immediately clear which items lean positive versus negative.

Color Coding Tips

When coloring Likert scale responses, make sure your palette is accessible for colorblind users. Instead of relying solely on red/green:

• Use a diverging palette like blue-gray-orange
• Add pattern fills or labels as secondary cues
• Test with a colorblind simulator before publishing

Example: Employee Satisfaction Survey

Imagine a survey asking 200 employees to rate five statements on a 5-point Likert scale. A stacked bar chart shows at a glance that "Work-life balance" has the most disagreement while "Team collaboration" scores highest—actionable insight that a data table alone would obscure.

Chart #3: Pie and Donut Charts for Demographics

Pie charts get a bad reputation, but demographic questions are one case where they genuinely shine. When you're showing "parts of a whole" with a few categories, a pie chart or donut chart communicates composition intuitively.

When Pie Charts Work for Surveys

• 3-6 categories maximum (more than that, use a bar chart)
• Categories sum to 100%: Gender, age group, employment status
• One dominant category: Makes the majority visually obvious

When NOT to Use Pie Charts

• More than 7 categories (unreadable)
• Similar-sized slices (impossible to compare)
• "Check all that apply" questions (doesn't sum to 100%)
• Comparing across multiple survey waves (use bar charts instead)

For a detailed breakdown of when each chart type works best, refer to our complete chart types guide.

Chart #4: Heatmaps for Matrix Questions

Matrix questions ask respondents to rate multiple items on the same scale. For example: "Rate each feature on importance (1-5) and satisfaction (1-5)." With many items and dimensions, individual charts become unwieldy—this is where heatmaps excel.

How Heatmaps Work for Survey Data

A heatmap displays data in a grid, with color intensity representing values. Darker colors mean higher values, lighter colors mean lower. This creates an instant visual pattern that reveals which items score high or low across dimensions.

Practical Example: Feature Importance vs. Satisfaction

Feature	Importance (avg)	Satisfaction (avg)	Gap
Speed	4.8	3.2	-1.6
Ease of Use	4.5	4.1	-0.4
Design	3.8	4.2	+0.4
Support	4.2	3.5	-0.7

A heatmap of this data immediately highlights the "Speed" gap—the most important feature with the lowest satisfaction. That's a clear priority for improvement, visible at a glance rather than buried in numbers. Create your own with the heatmap maker—upload a CSV with your matrix data and get a visualization in seconds. You can import survey data directly from CSV, Excel, or Google Sheets. For more on heatmap types and best practices, see our complete heatmap guide.

Chart #5: Line Charts for Survey Trends Over Time

When you run surveys regularly—quarterly employee satisfaction, monthly NPS, annual customer feedback—a line chart is the natural choice for tracking changes.

Key Use Cases

• Net Promoter Score (NPS) trends: Track promoters vs. detractors over time. Learn about NPS methodology
• Employee engagement: Quarterly pulse survey results
• Customer satisfaction (CSAT): Monthly satisfaction scores after service interactions
• Pre/post intervention: Compare survey results before and after a change

Best Practices for Survey Trend Lines

• Use consistent time intervals on the X-axis
• Add data point markers so individual values are clear
• Include a reference line for targets or benchmarks
• Annotate significant events ("New feature launched", "Policy change")

For more on effective trend visualization, see our complete guide to time series charts.

Chart #6: Radar Charts for Multi-Attribute Comparisons

When your survey asks respondents to rate multiple attributes of a product, service, or experience, a radar chart (also called a spider chart) can reveal the overall profile at a glance.

When Radar Charts Help

• Comparing 4-7 dimensions simultaneously
• Showing strengths and weaknesses profiles
• Overlaying two groups (e.g., "our product" vs "competitor") for comparison

When Radar Charts Confuse

• More than 7 axes (too cluttered)
• When precise values matter more than patterns
• Non-expert audiences unfamiliar with the format

Example: Product Feature Ratings

A survey asking customers to rate your product on Performance, Reliability, Design, Support, Value, and Ease of Use on a 1-10 scale creates a hexagonal profile. Overlaying the competitor's scores shows exactly where you lead and where you trail.

Chart #7: Histograms for Score Distributions

Sometimes the average survey score hides the real story. A product might have a 3.5/5 average satisfaction score because half the respondents gave 5 and half gave 2—a bimodal distribution that signals a polarizing experience.

Histograms reveal these distribution patterns by showing how many respondents fall into each score range. For survey data, this means you can see whether responses cluster around a central value (consensus) or spread across extremes (disagreement).

When to Use Histograms for Surveys

• Understanding the spread of numerical ratings
• Detecting bimodal or skewed distributions
• Checking whether the "average" is representative
• Comparing distributions across respondent segments

You can also create histograms from your survey data using our histogram maker—just upload your CSV and select the histogram chart type.

Choosing the Right Chart: Decision Guide

Not sure which chart to pick? Walk through this decision tree:

Start Here: What's Your Question Type?

Single-select multiple choice → Bar chart (sort by frequency, horizontal for long labels)

Multi-select ("check all that apply") → Bar chart (note: percentages won't sum to 100%)

Likert scale (agreement/satisfaction) → Stacked bar chart (use diverging layout for clearest communication)

Demographics (parts of whole) → Pie chart or donut chart (max 6-7 categories)

Matrix (rate multiple items) → Heatmap (color intensity shows patterns across dimensions)

Repeated surveys (trends) → Line chart (consistent time intervals, annotate key events)

Multi-attribute comparison → Radar chart (4-7 dimensions, expert audiences)

Score distribution → Histogram (look for clusters, gaps, and outliers)

For a broader overview of chart selection beyond surveys, see our data visualization for beginners guide.

Creating Survey Charts in CleanChart

Step 1: Prepare Your Survey Data

Export your survey responses as a CSV file. Most survey platforms (SurveyMonkey, Google Forms, Typeform, Qualtrics) support CSV export. If your data needs cleaning, follow our CSV data cleaning guide first.

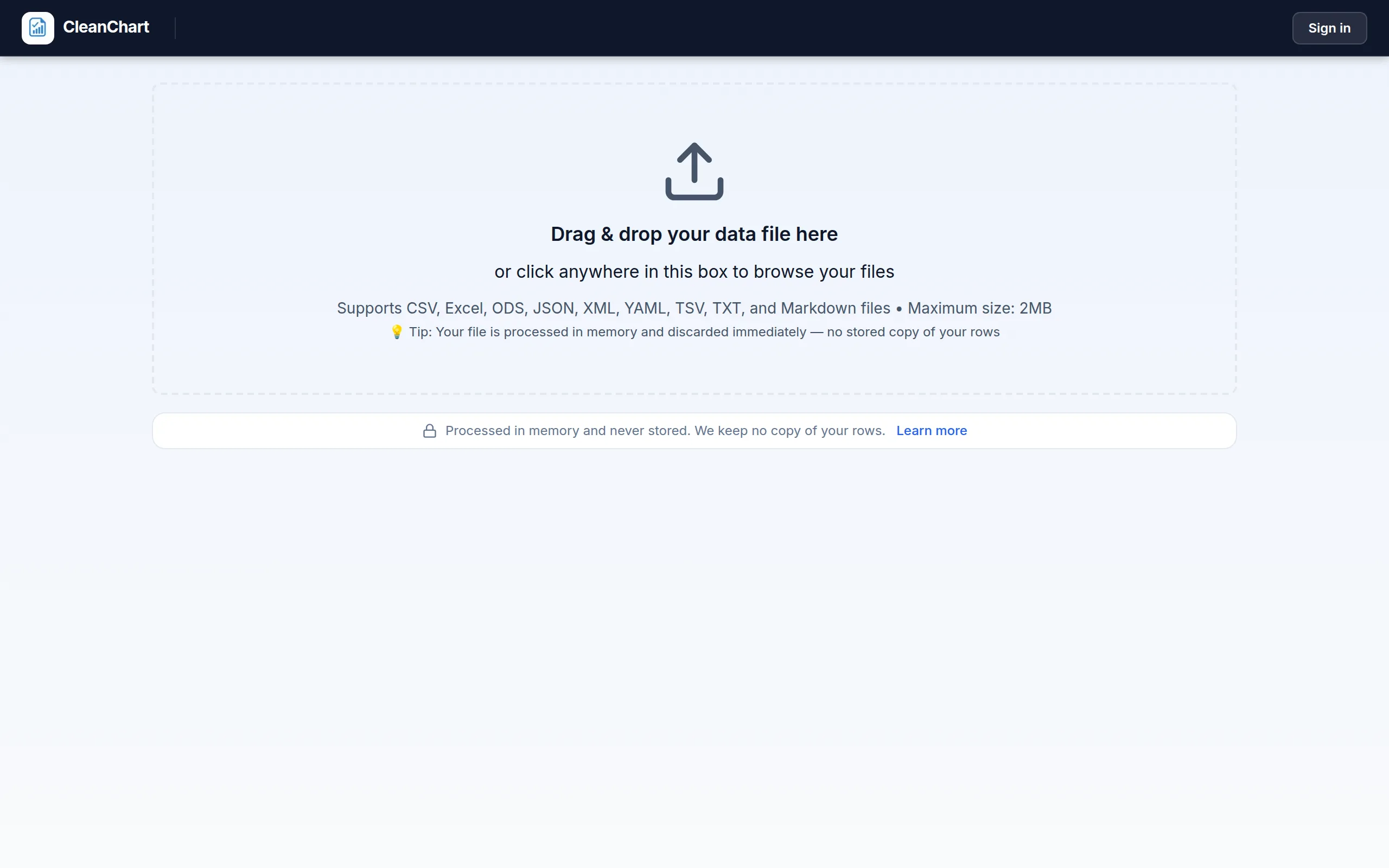

Step 2: Upload and Clean

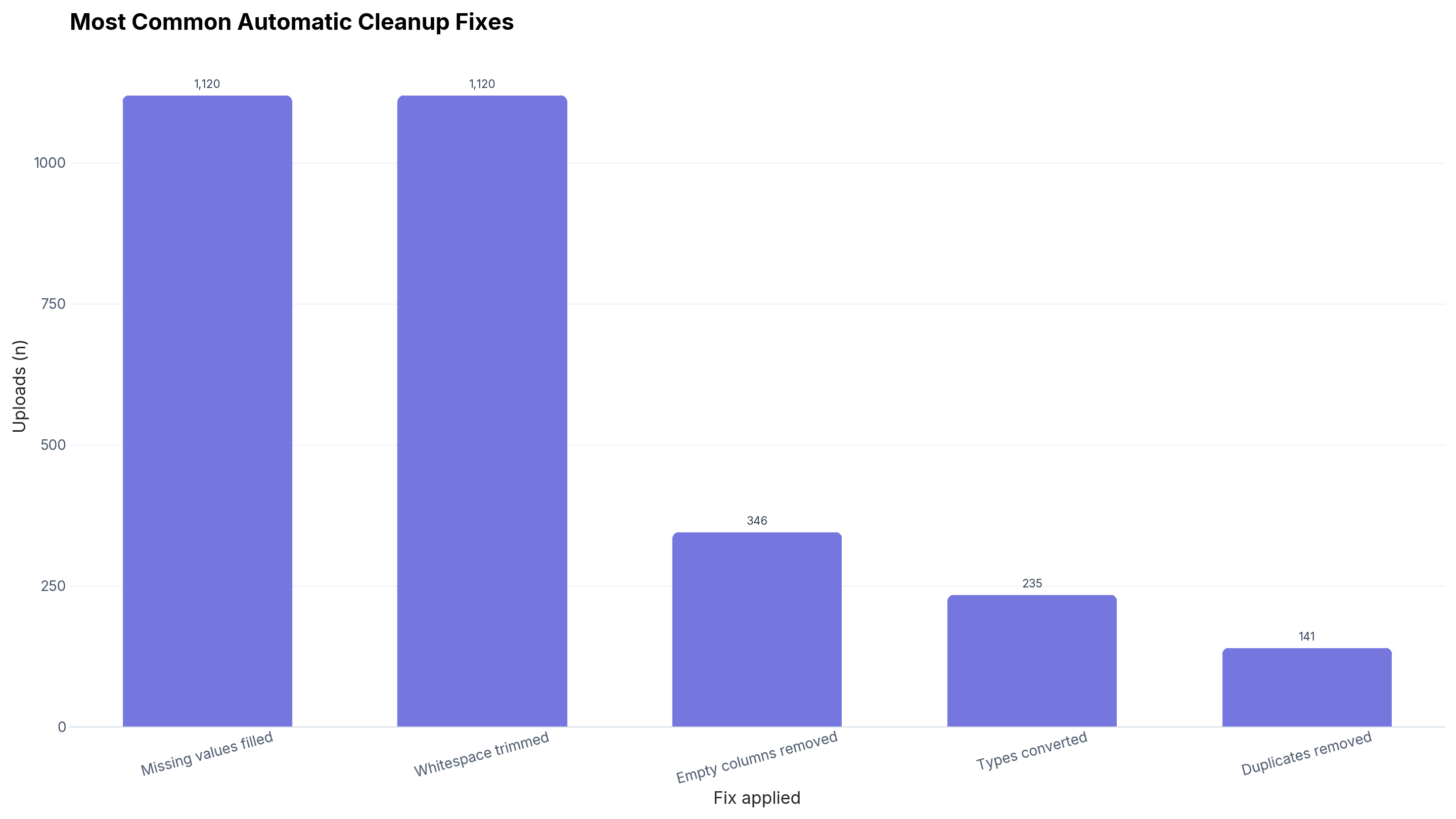

Upload your CSV to CleanChart. The tool automatically detects common survey data issues: blank responses, inconsistent formatting, and duplicate entries. For deeper cleaning tips, see 5 data cleaning mistakes that ruin your charts.

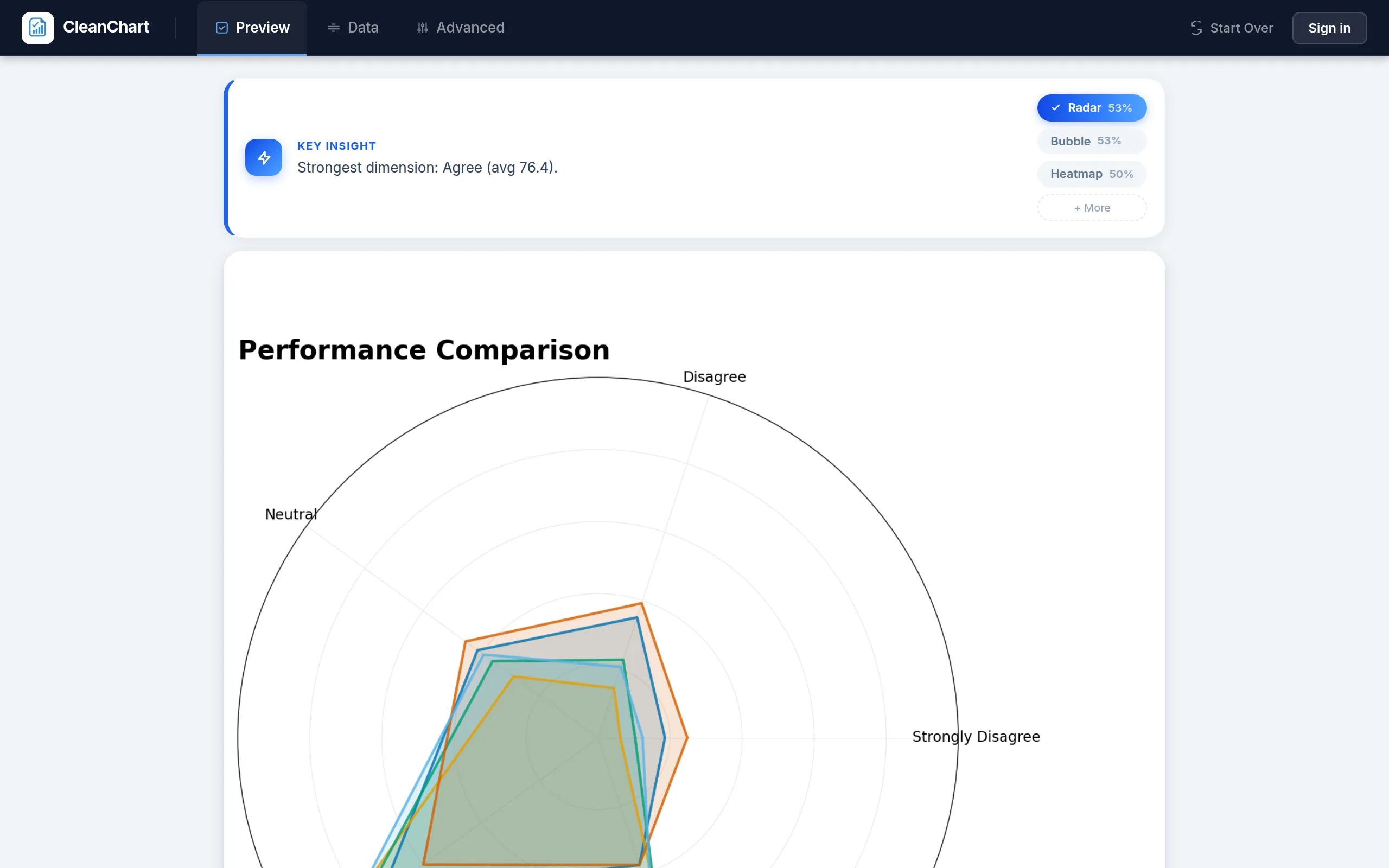

Step 3: Choose Your Chart Type

Based on the decision guide above, select the chart type that matches your question format. CleanChart suggests chart types based on your data structure.

Step 4: Customize for Your Audience

Add a descriptive title, label your axes, and choose a color palette that's both attractive and accessible. For academic publications, follow the formatting guidelines in our publication-ready charts guide.

Step 5: Export

Download as PNG for presentations, SVG for publications, or PDF for reports. Need to embed charts in slides? See our guide on exporting charts for PowerPoint.

Common Mistakes When Visualizing Survey Data

Mistake #1: Using Pie Charts for Everything

Pie charts only work for "parts of a whole" with few categories. For Likert scales, comparisons, or multi-select questions, bar charts are almost always better.

Mistake #2: Ignoring Sample Size

A bar chart showing "80% prefer Feature A" looks impressive—until you realize it's based on 5 respondents. Always report your sample size (n=X) alongside percentages.

Mistake #3: Misleading Scales

Starting your Y-axis at a value other than zero can exaggerate small differences. If 85% vs 82% satisfaction looks like a massive gap on your chart, your scale is misleading. For more on this, see why your chart looks wrong.

Mistake #4: Ignoring Non-Responses

Excluding "N/A" or blank responses without noting it can skew your results. Always document how you handled incomplete responses. See our guide on handling missing values in CSV files for strategies.

Mistake #5: Over-Aggregating

Collapsing a 5-point Likert scale into "Agree" vs "Disagree" loses nuance. Show the full distribution when possible—the difference between "Strongly Agree" and "Somewhat Agree" often matters.

Frequently Asked Questions

How do I handle "Other" responses in my chart?

Group infrequent "Other" responses into a single category. If "Other" is larger than 10-15%, consider whether your original answer options were comprehensive enough. According to SurveyMonkey's question design guide, a high "Other" rate often means your options need revision.

Should I show percentages or raw counts?

Use percentages when comparing groups of different sizes. Use raw counts when absolute numbers matter (e.g., support ticket volumes). Best practice: show both when space allows—"42% (n=210)".

What about incomplete surveys?

Decide before visualizing: include only complete responses, or analyze partial data separately. Document your choice. For handling missing data, see our missing values guide.

How do I visualize cross-tabulated data?

Grouped bar charts work well for comparing one question's responses across demographic segments (e.g., satisfaction by age group). Heatmaps are better when you have many variables to cross-reference.

Can I combine multiple question types in one chart?

Generally, keep each chart focused on one question type. Use a dashboard layout to display multiple charts together for a comprehensive view.

What's the best format for academic papers?

Use high-resolution (300 DPI) exports in PNG or SVG format. Follow your journal's specific guidelines. Our publication-ready charts guide covers the details.

How many respondents do I need for meaningful charts?

There's no universal minimum, but according to Pew Research Center's sampling guidelines, larger samples reduce margin of error. For most internal surveys, 30+ responses per segment provides reasonable stability for visualization.
